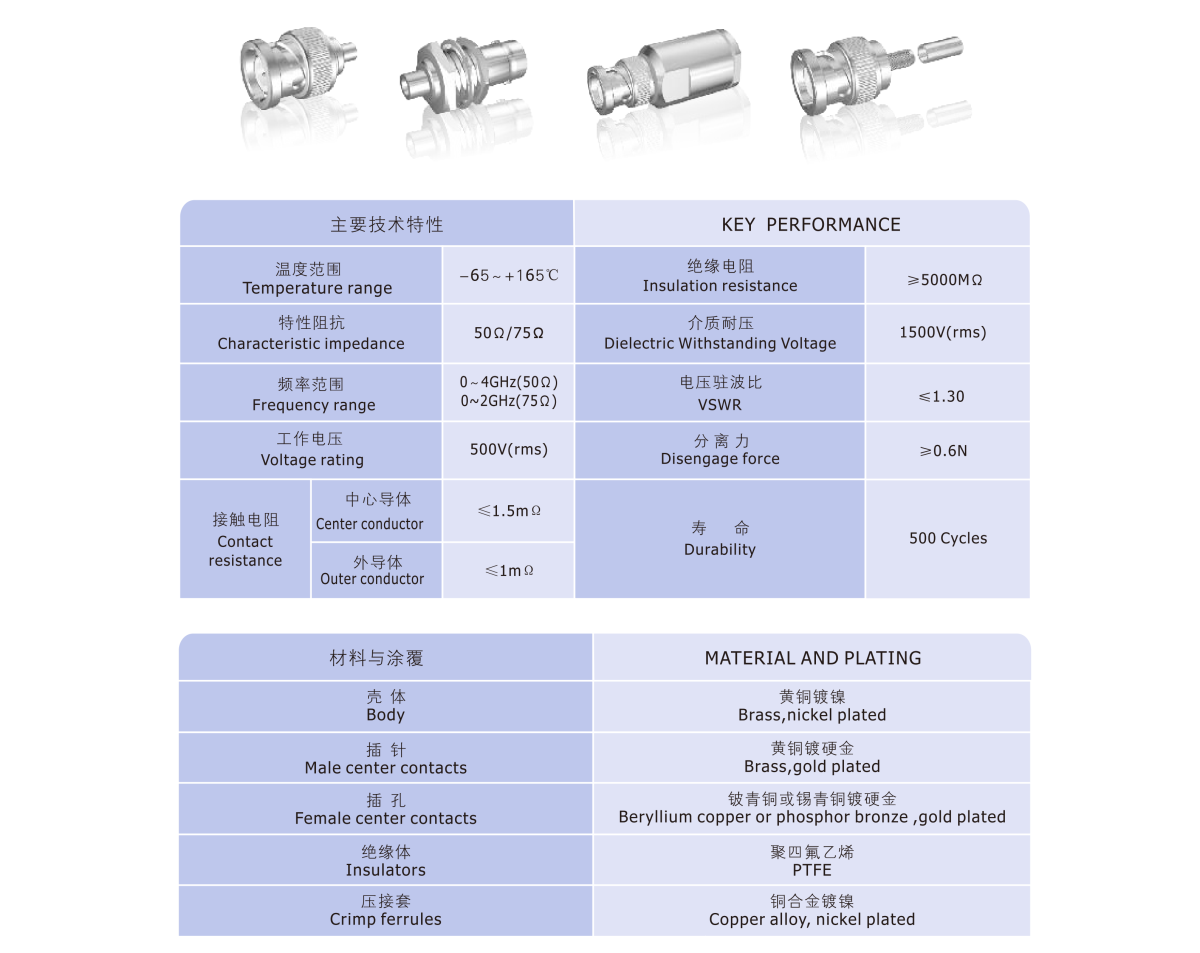

Series BNC are bayonet -coupling popular coaxial connectors, which have the excelletn performaces of rapid connect/disconnect, high reliability, are used to connect RF coaxial cables in electrical and electronic equipment and instruments.

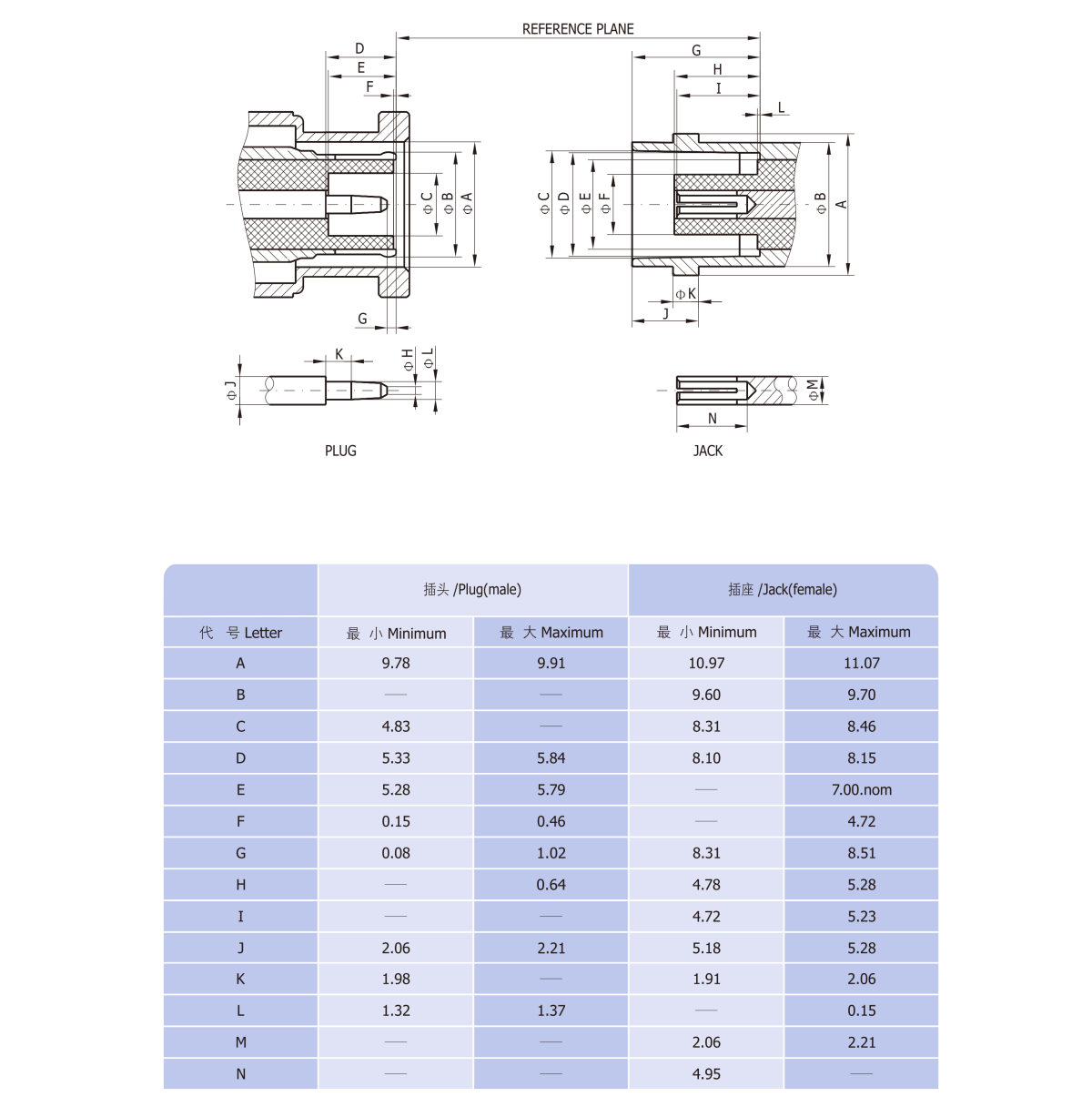

The interface dimaensions and technical characteristics are in accord with the specifications fo MIL-C-39012, IEC-169-8, CECC22120 and BS9210 N004.
