FME(SAP)---Special Coaxial connectors for Cellular Applications in Vehicles

FME---Compact miniature connectors developed for mobile applications up to 3 GHz in vehicles.The basic element is a cable jack,whose small diameter simplifies the installation of cables in vehicles.After installation,the conversion the cable jack to other connector series can be performed simply and without space problems.FME connectors can be used for the entire frequency range from 0 to 3GHz,due to the use of PTFE as dielectric.

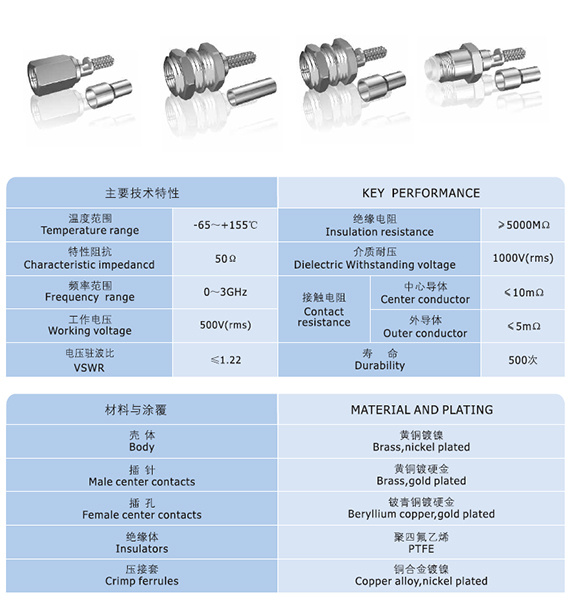

Product Features

Interface according to Rosenberger series FME,intermateable with SAP

Quality tested according to US MIL-STD 202

Frequency range up to 3GHz

VSWR(Straight connector):≤1.22 typ.

Easy and uncomplicated conversion to other series.
