Series MCX are snap-on coupling micro-miniature coaxial connectors with 30% smaller size than SMB connectors, which are sure to fit most applications where space, weight, performance is easy to assembly in RF circuits of mobile and fixed communication system.

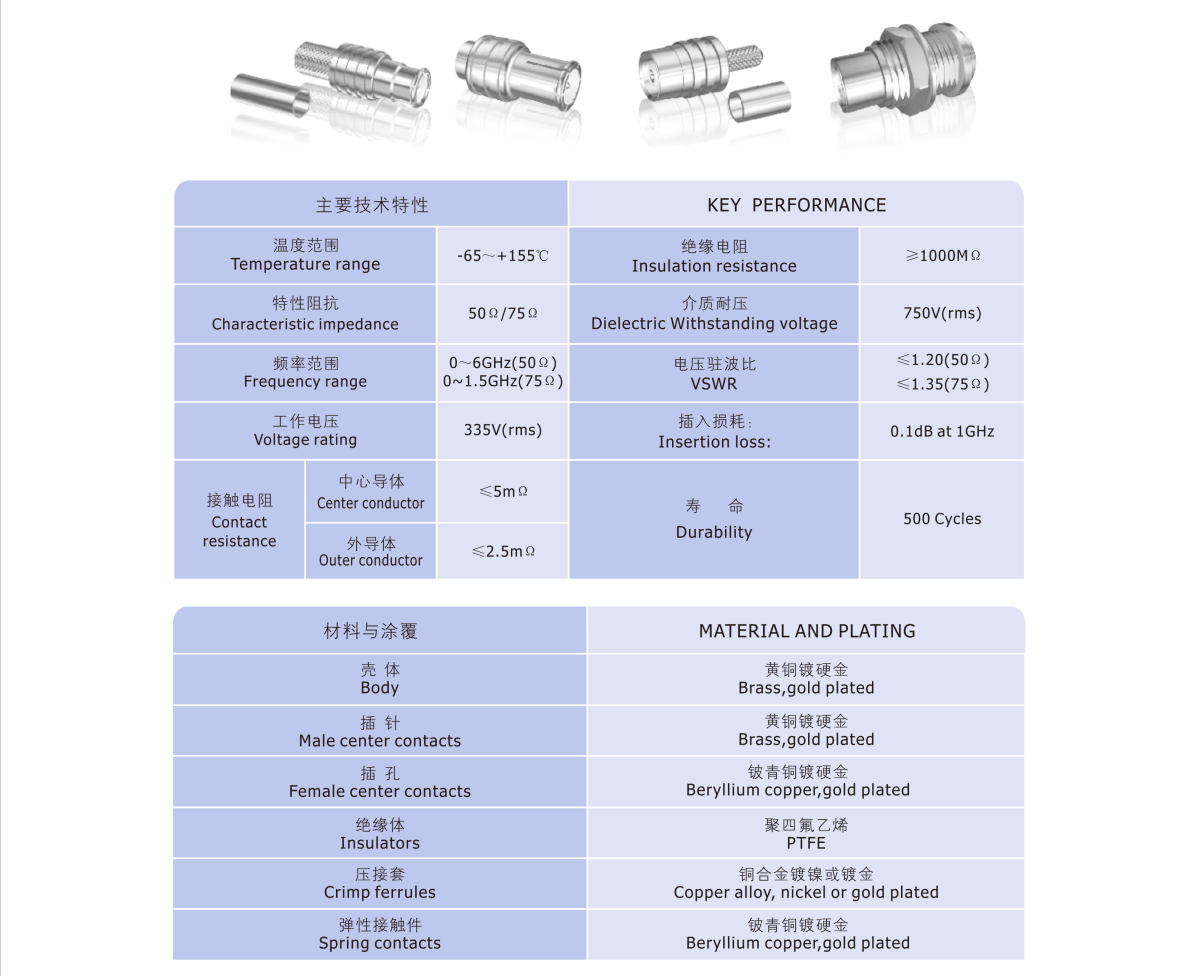

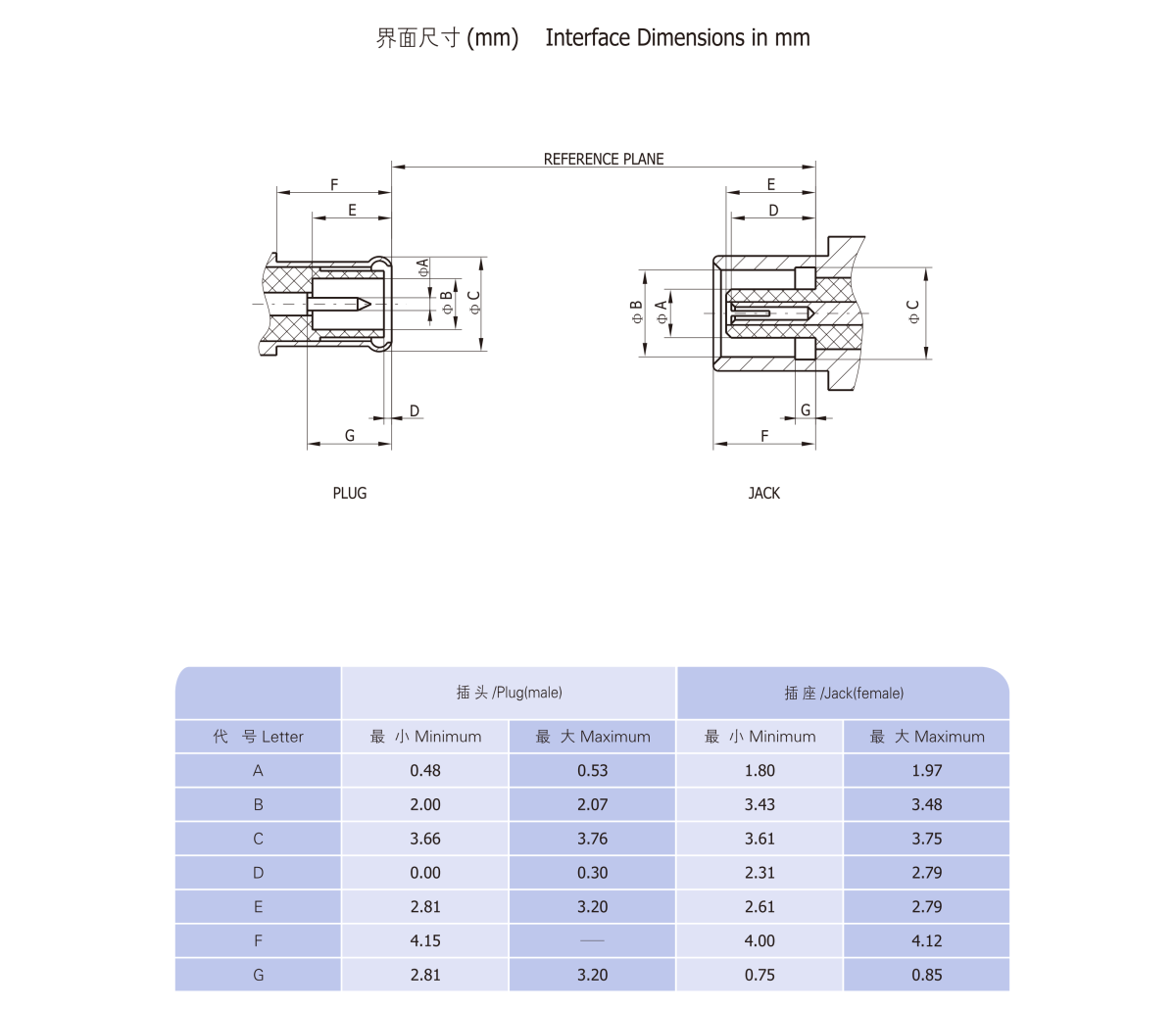

The interface dimensions and technical characteristics conform to the European CECC 22220 specifications. Characteristic impedance 50 Ohm, 75 Ohm.
