Series DKZ (1..0/2.3 DIN 41626) are slide-on coupling miniature coaxial inserts, which have the excellent performances of small size, highmechanical and electrical stability, are especially used in the PCB connectors of mixtures of high and low frequency for radio telecommunication equipment to connect Rf circuits with RF cables, and suitabel for applications up to 4GHz.

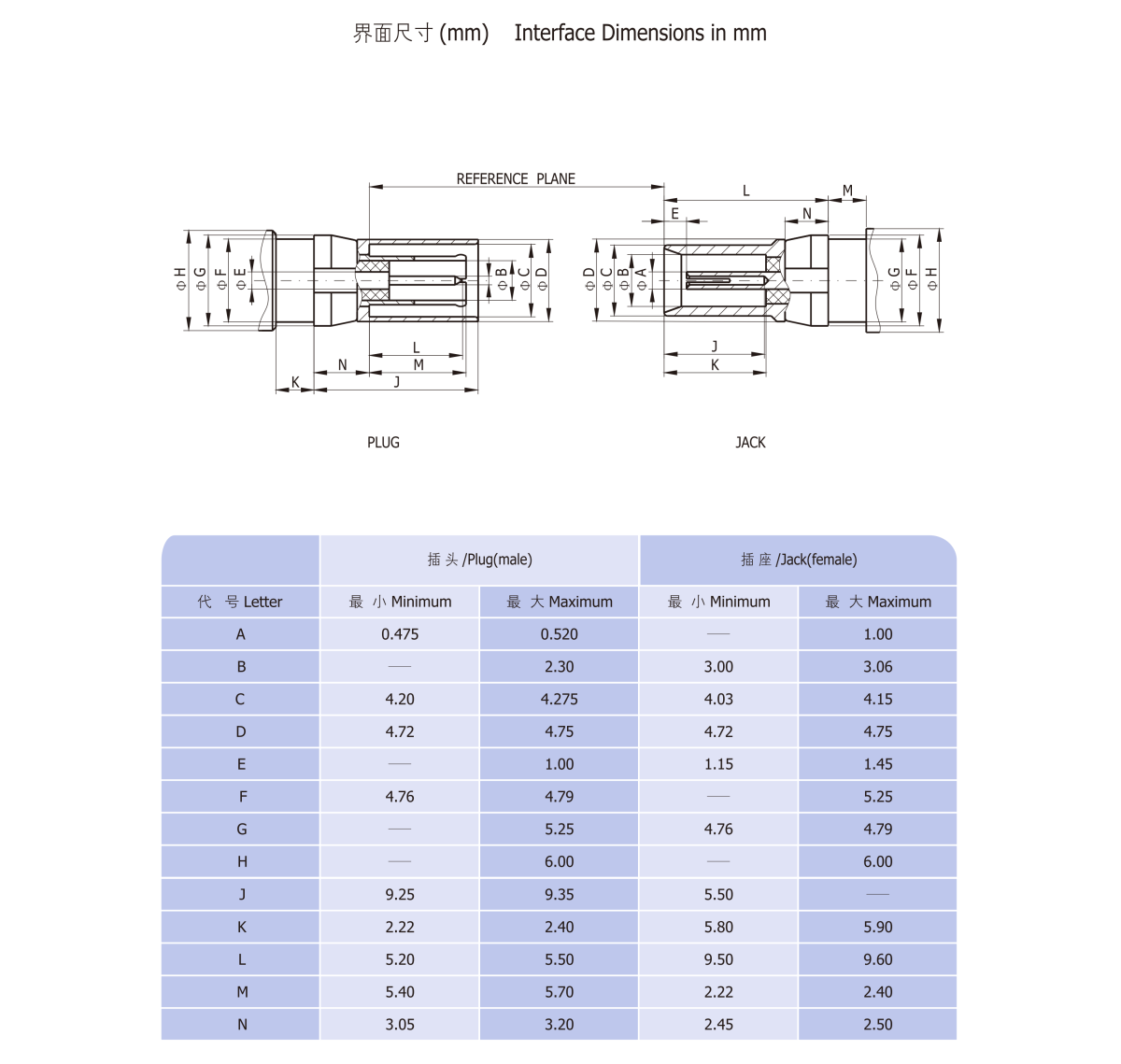

The interface dimensions and technical characteristics are in accord with the specifications of DIN 41626/2.
